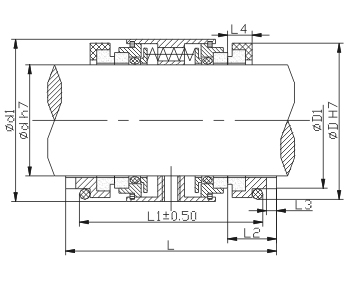

1. 静环座 2.0型圈 3. 静环 4. 动环 5. 动环座 6.0型圈 7. 挡圈 8. 弹簧 单端面密封 非平衡型 弹簧带勾 视旋转方向而定 符合DIN24960标准...
单端面密封 非平衡型 弹簧带勾 视旋转方向而定
符合DIN24960标准
|
型号规格/尺寸
|
d
|
d1
|
D
|
D1
|
L
|
L1
|
L2
|
L3
|
L4
|
|
DLR/202-20
|
20
|
38
|
35
|
29
|
74.0
|
61.0
|
19
|
5.5
|
7.5
|
|
DLR/202-25
|
25
|
43
|
40
|
34
|
75.0
|
62.0
|
19
|
5.5
|
7.5
|
|
DLR/202-30
|
30
|
48
|
45
|
39
|
75.0
|
62.0
|
19
|
5.5
|
7.5
|
|
DLR/202-35
|
35
|
53
|
50
|
44
|
75.0
|
62.0
|
20
|
5.5
|
7.5
|
|
DLR/202-40
|
40
|
61
|
58
|
51
|
83.0
|
70.0
|
20
|
5.5
|
9.0
|
|
DLR/202-45
|
45
|
66
|
63
|
56
|
83.0
|
70.0
|
20
|
5.5
|
9.0
|
|
DLR/202-50
|
50
|
73
|
70
|
62
|
89.0
|
74.0
|
22
|
6.5
|
9.5
|
|
DLR/202-55
|
55
|
78
|
75
|
67
|
89.0
|
74.0
|
22
|
6.5
|
11.0
|
|
DLR/202-60
|
60
|
83
|
80
|
72
|
101.0
|
86.0
|
22
|
6.5
|
11.5
|
|
DLR/202-65
|
65
|
88
|
85
|
77
|
101.0
|
86.0
|
23
|
6.5
|
11.5
|
|
DLR/202-70
|
70
|
95
|
92
|
83
|
107.0
|
92.0
|
25
|
6.5
|
11.5
|
|
DLR/202-75
|
75
|
100
|
97
|
88
|
107.0
|
92.0
|
25
|
6.5
|
11.5
|
|
DLR/202-80
|
80
|
108
|
105
|
95
|
107.5
|
92.5
|
25
|
6.5
|
12.0
|
