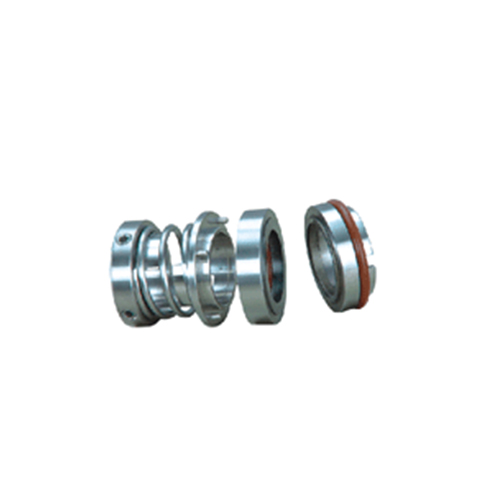

1. 静环座 2.0型圈 3. 静环 4. 动环 5. 动环座 6.0型圈 7. 挡圈 8. 弹簧 单端面密封 非平衡型 弹簧带勾 视旋转方向而定 符合DIN24960标准...
单端面密封 非平衡型 弹簧带勾 视旋转方向而定
符合DIN24960标准
|

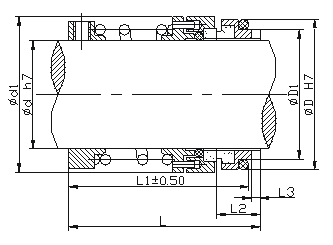

型号规格/尺寸
|
d
|
d1
|
D
|
D1
|
L
|
L1
|
L2
|
L3
|
|
DLR/124-20
|
20
|
34
|
36
|
28.5
|
51.0
|
46.0
|
20
|
5
|
|
DLR/124-25
|
25
|
39
|
42
|
34.5
|
54.0
|
49.0
|
20
|
5
|
|
DLR/124-30
|
30
|
49
|
50
|
40.5
|
56.0
|
51.0
|
20
|
5
|
|
DLR/124-35
|
35
|
57
|
55
|
45.5
|
66.5
|
61.7
|
20
|
5
|
|
DLR/124-40
|
40
|
62
|
60
|
50.5
|
69.5
|
64.7
|
20
|
5
|
|
DLR/124-45
|
45
|
67
|
65
|
55.5
|
74.5
|
69.7
|
20
|
5
|
|
DLR/124-50
|
50
|
72
|
70
|
60.5
|
78.5
|
73.7
|
21
|
5
|
|
DLR/124-55
|
55
|
77
|
75
|
65.5
|
80.5
|
75.7
|
21
|
5
|
|
DLR/124-60
|
60
|
82
|
80
|
70.5
|
80.5
|
75.7
|
21
|
5
|
|
DLR/124-65
|
65
|
91
|
89
|
79.5
|
86.5
|
81.7
|
22
|
5
|
|
DLR/124-70
|
70
|
96
|
94
|
84.5
|
88.5
|
83.7
|
22
|
5
|
|
DLR/124-75
|
75
|
101
|
99
|
89.5
|
88.5
|
83.7
|
22
|
5
|
|
DLR/124-80
|
80
|
106
|
104
|
94.5
|
93.5
|
88.7
|
22
|
5
|
|
DLR/124-85
|
85
|
111
|
109
|
99.5
|
96.5
|
91.7
|
22
|
5
|
|
DLR/124-90
|
90
|
116
|
114
|
104.5
|
97.5
|
92.7
|
22
|
5
|
|
DLR/124-95
|
95
|
121
|
119
|
109.5
|
97.5
|
92.7
|
22
|
5
|
